Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer

Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer

$10,599.00
$19,740.00 $10,599.00
-30% Sold out
Shipping calculated at checkout.

In stock

Printer Set Options
View full details
Welcome Print Bundle – 24" Film + Premium Ink Starter Pack DTFONESTOP

AUDLEY S8074-3 DTF Printer

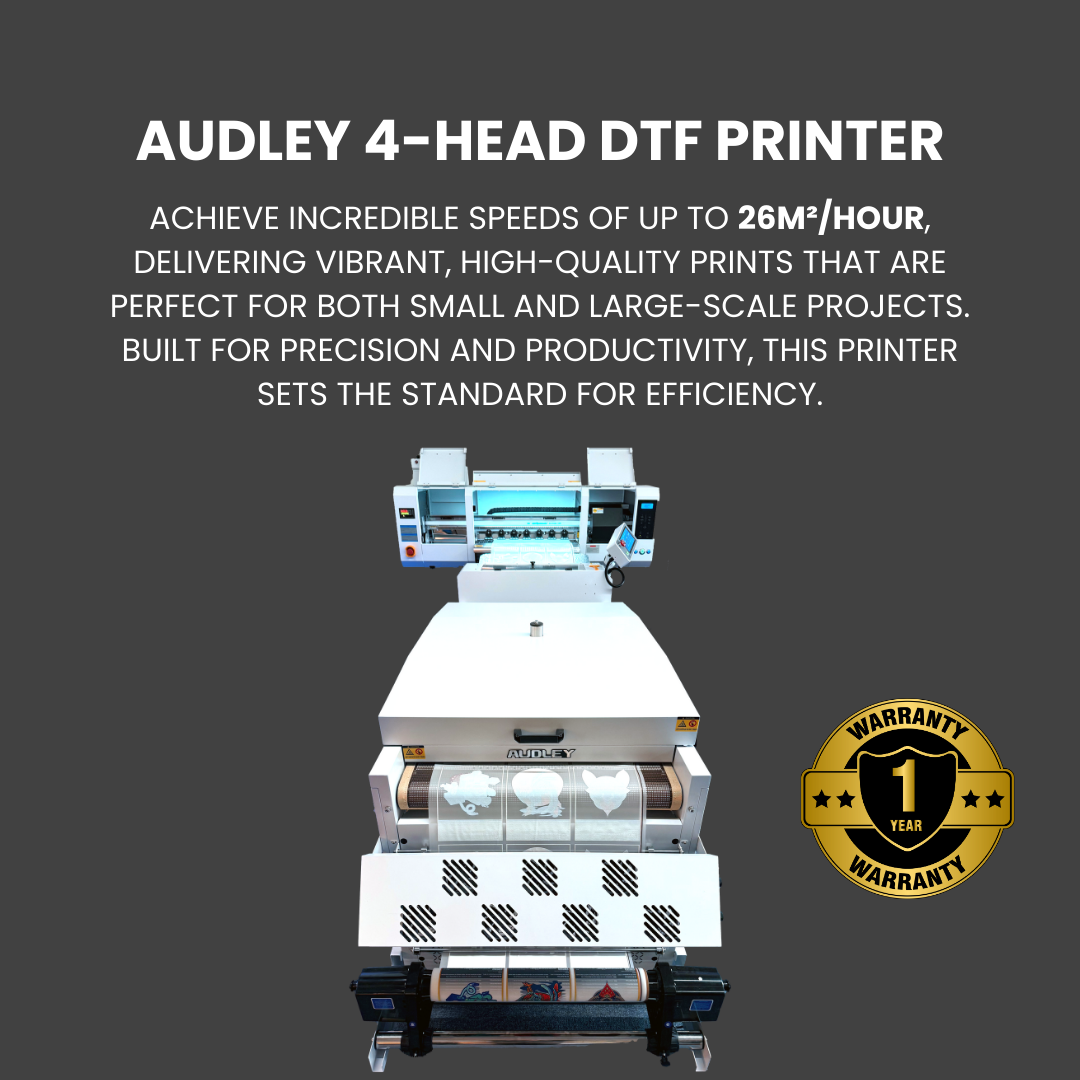

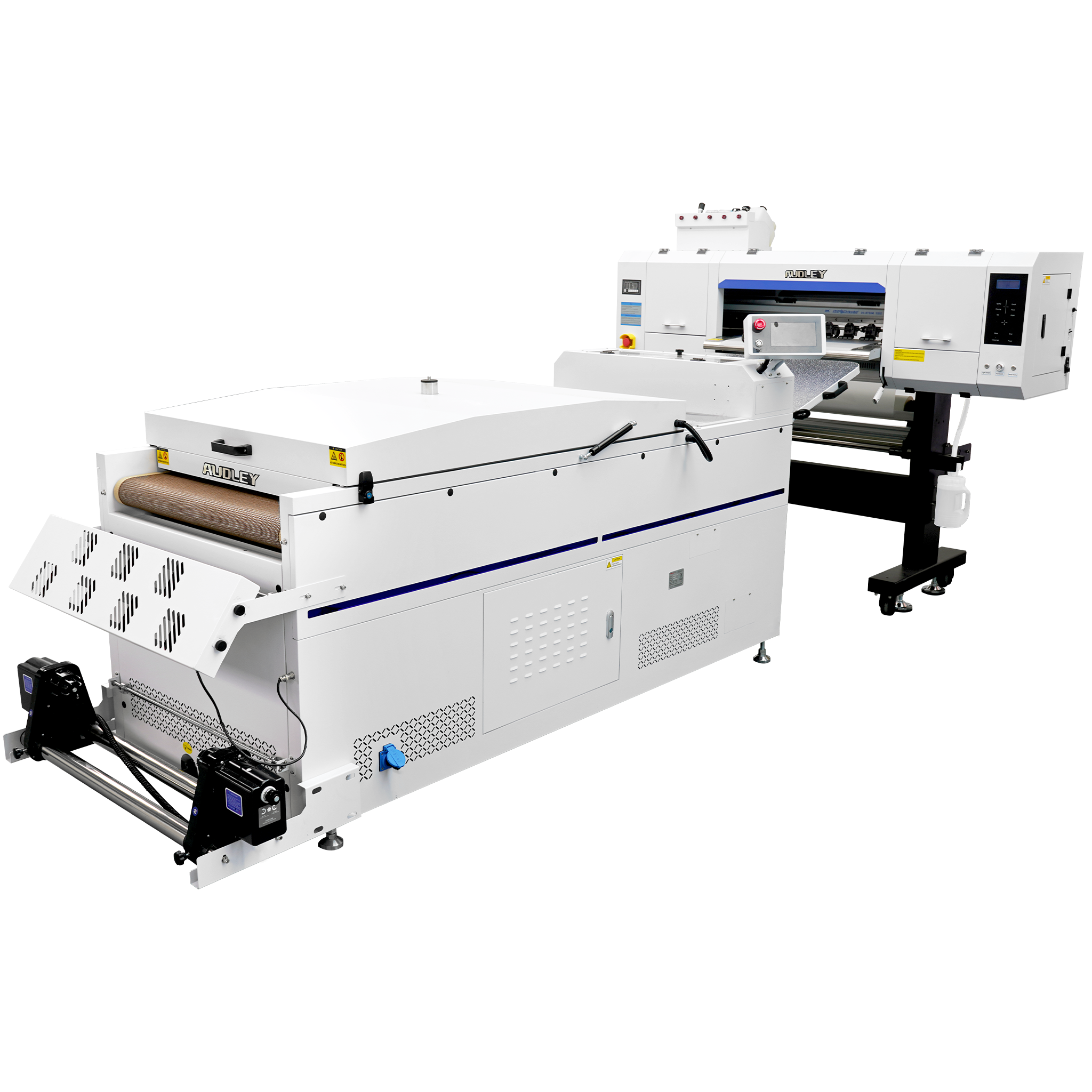

The AUDLEY S8074-3 DTF Printer, powered by 4 Epson I3200-A1 print heads, combined with the DF-800L(A) Powder Shaker, offers unmatched precision, speed, and quality for textile printing. This powerful duo guarantees consistent, vibrant prints with efficient powder application and curing to meet high-demand production needs.

Why Choose This DTF Combo?

  • Superior Print Quality: Achieve outstanding color vibrancy and image clarity with the 4-pass, 6-pass, and 8-pass speed options.
  • Efficient Production: The powerful shaker applies powder uniformly, reducing errors and enhancing transfer quality.
  • User-Friendly Operation: Simplified controls and automated functions make this combo suitable for both new and experienced operators.
  • Reliable & Durable: Both the printer and shaker are built for consistent, heavy-duty use, ensuring long-term productivity.
Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer Audley
Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer Audley

In-Depth Product Features

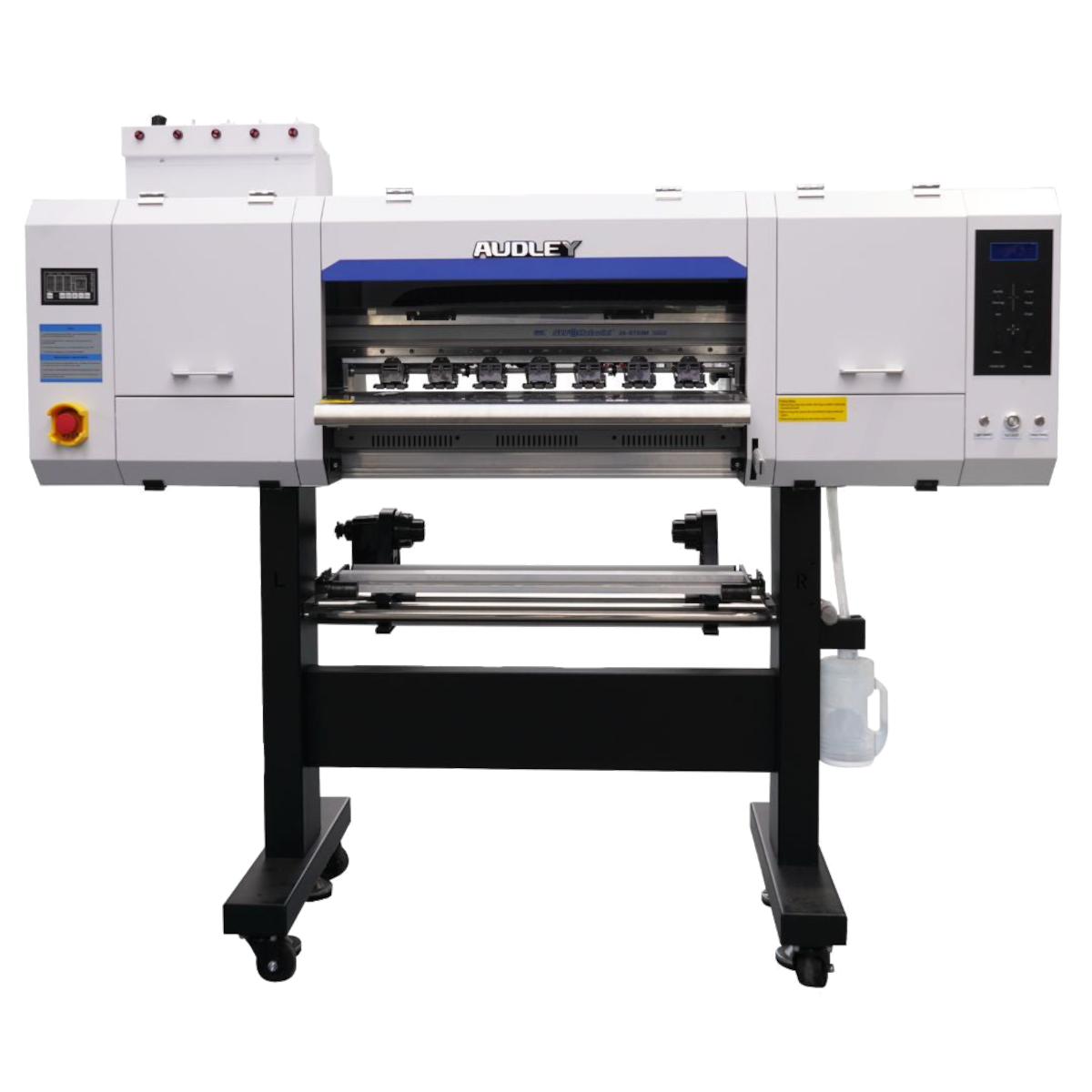

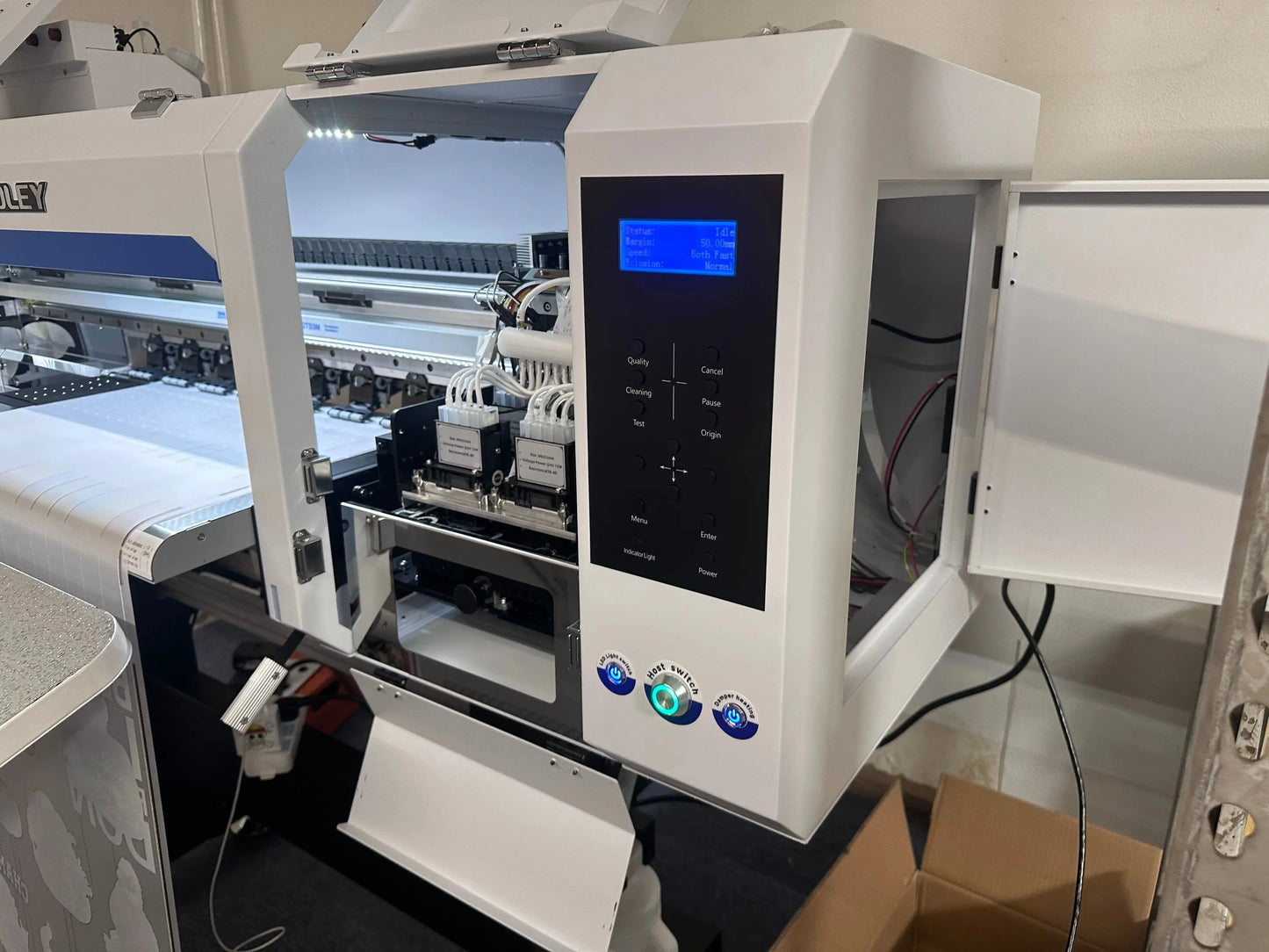

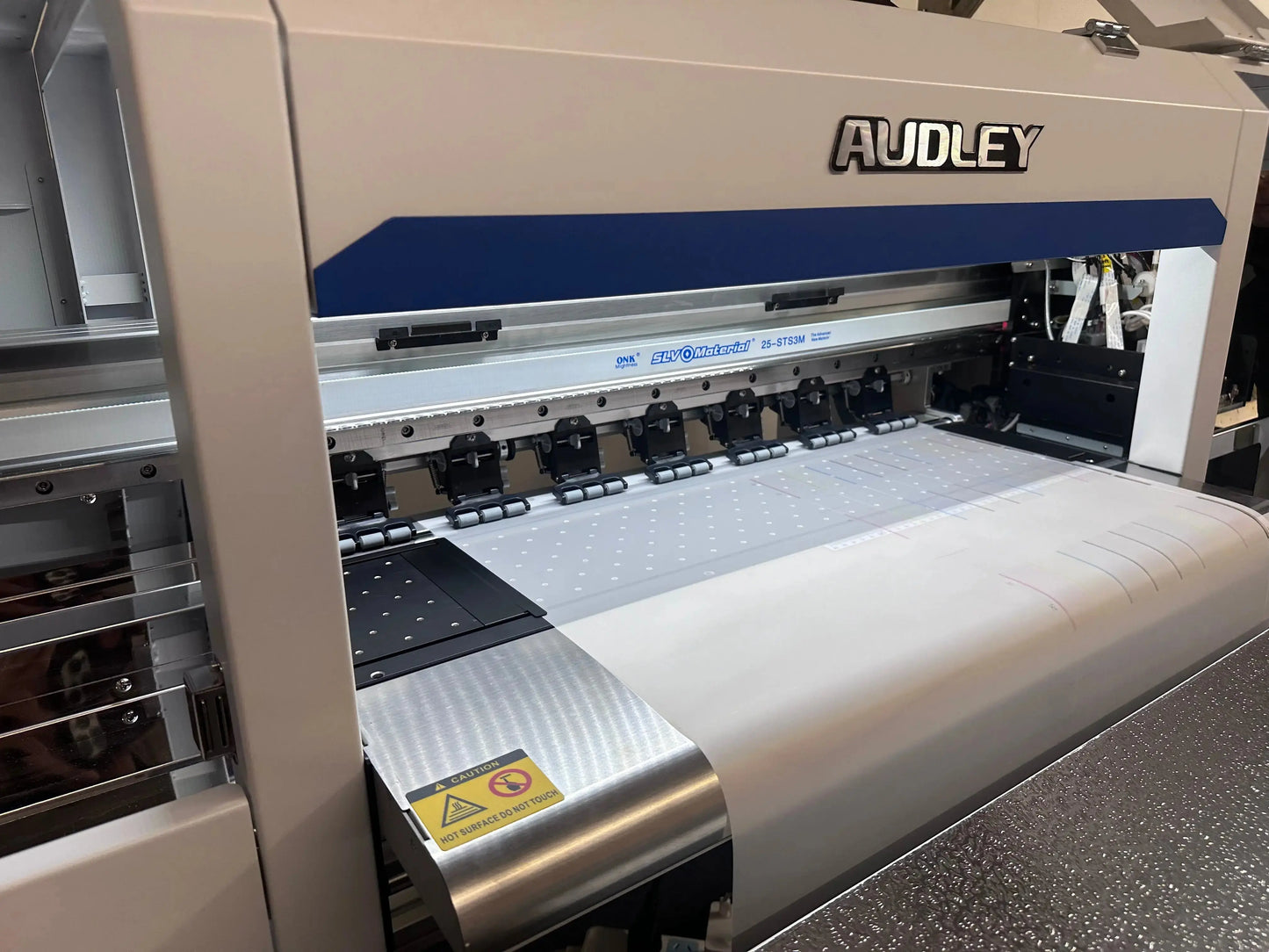

AUDLEY S8074-3 DTF Printer

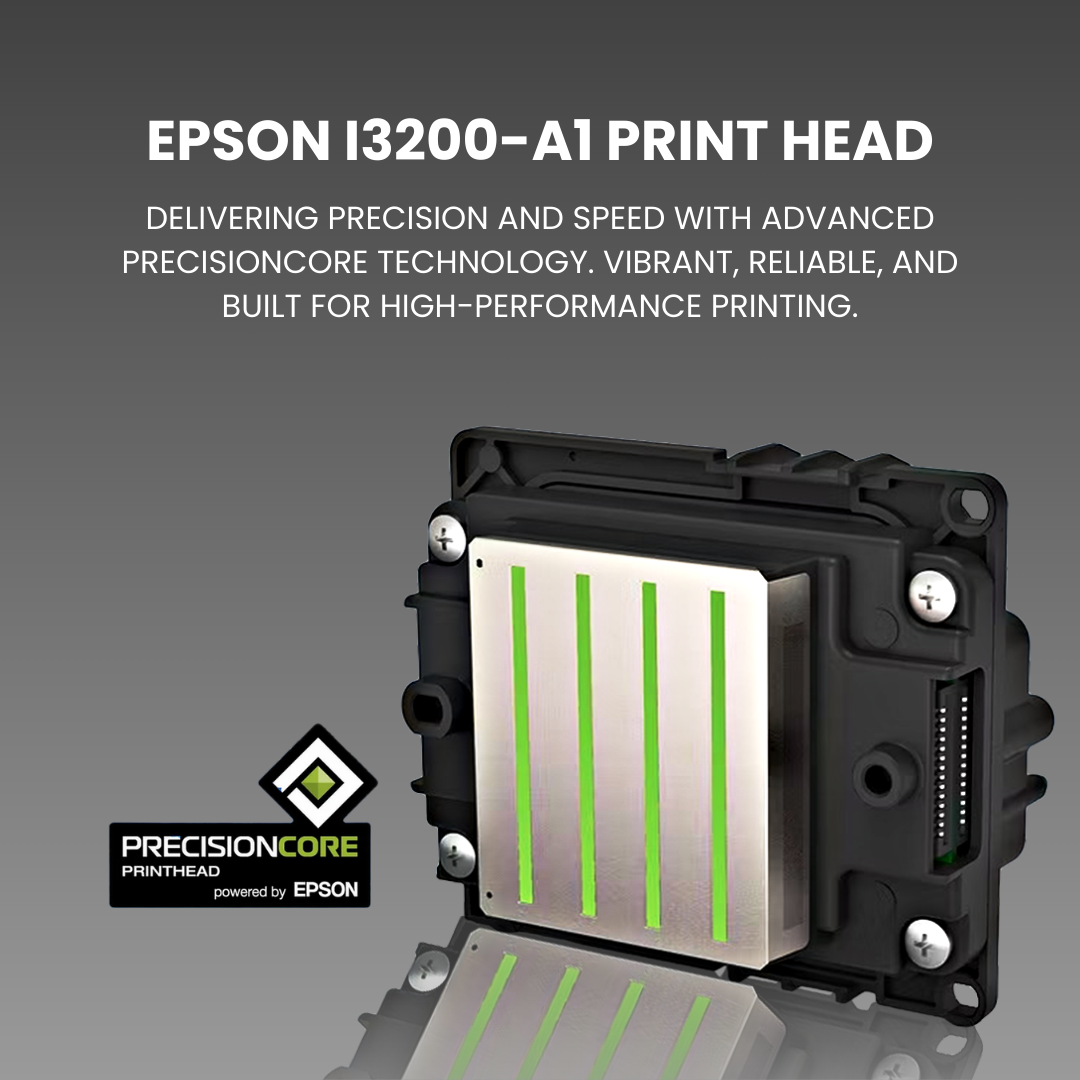

  • 4 Epson I3200-A1 Print Heads – delivers vibrant, accurate colors with excellent detail and smooth gradients.
  • High-Speed & Versatile Printing – selectable print modes (4-pass, 6-pass, 8-pass) let you choose between maximum productivity or ultra-fine detail.

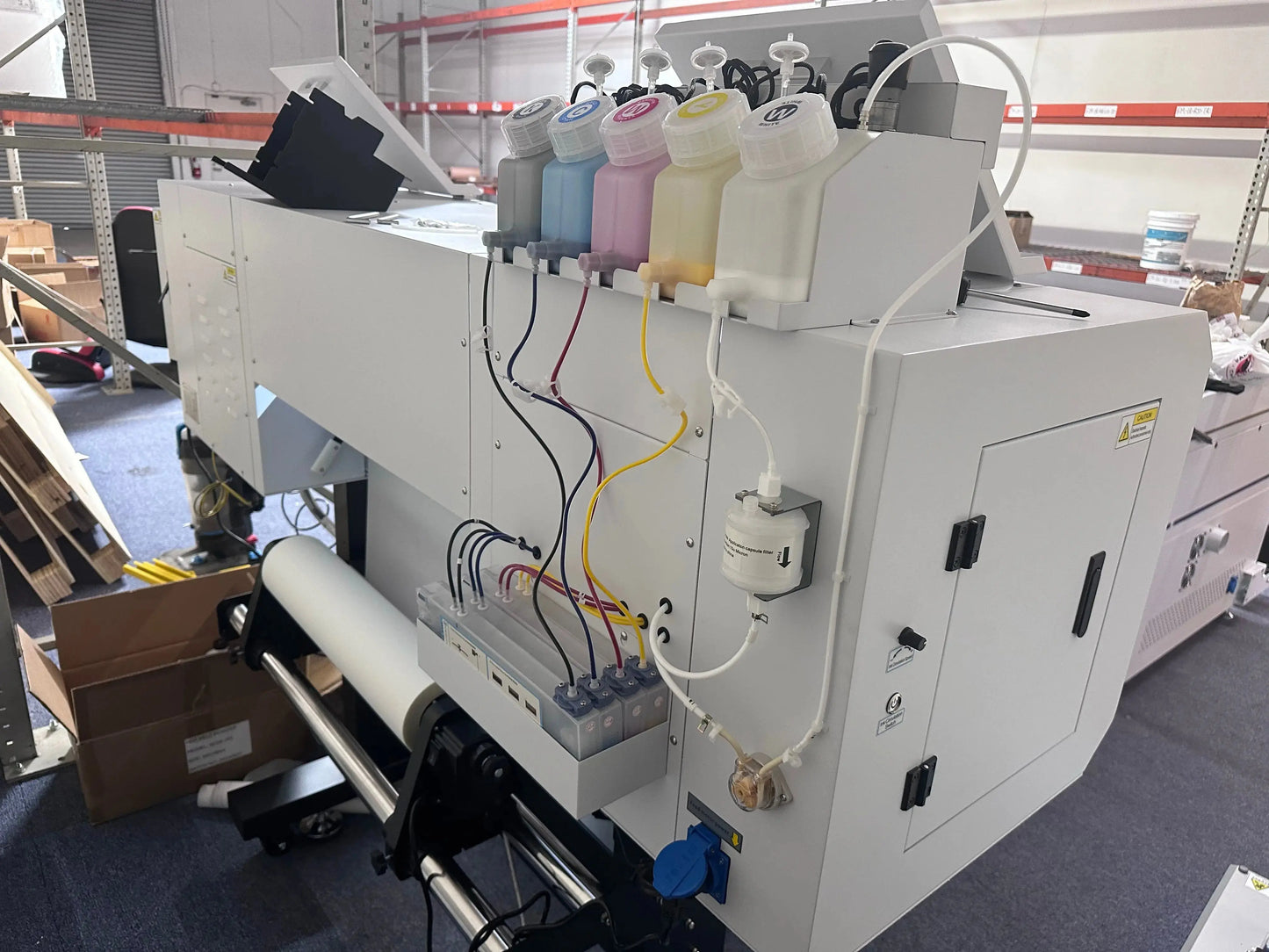

  • Stable Ink System – high-precision ink station maintains consistent ink flow, reducing clogging and downtime.

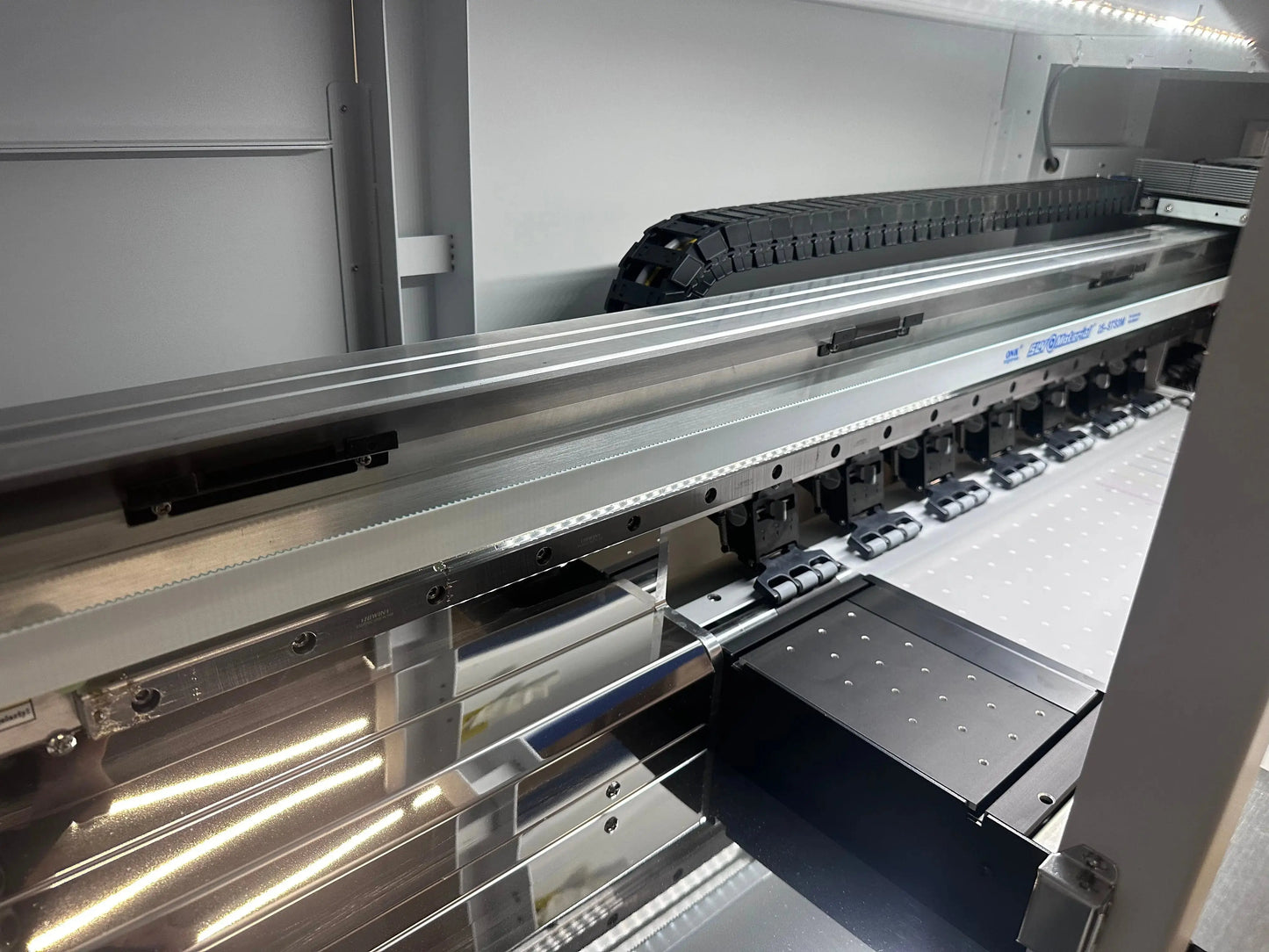

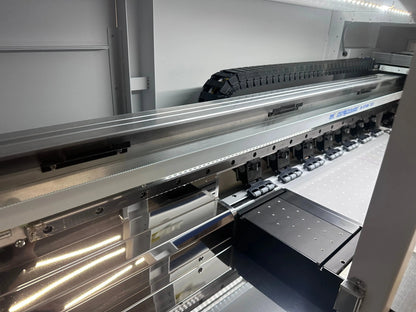

  • Accurate Media Feeding – pinch roller and pressing wheel system ensures smooth, even tension during printing.
  • Temperature Monitoring – built-in sensor automatically adjusts to keep the printer operating in ideal conditions.
  • Compact Yet Heavy-Duty – supports media widths up to 24 in (60 cm) with a robust frame designed for continuous production.
  • Pigment Ink Flexibility – compatible with CMYK + White ink for durable, vibrant, and washable prints.

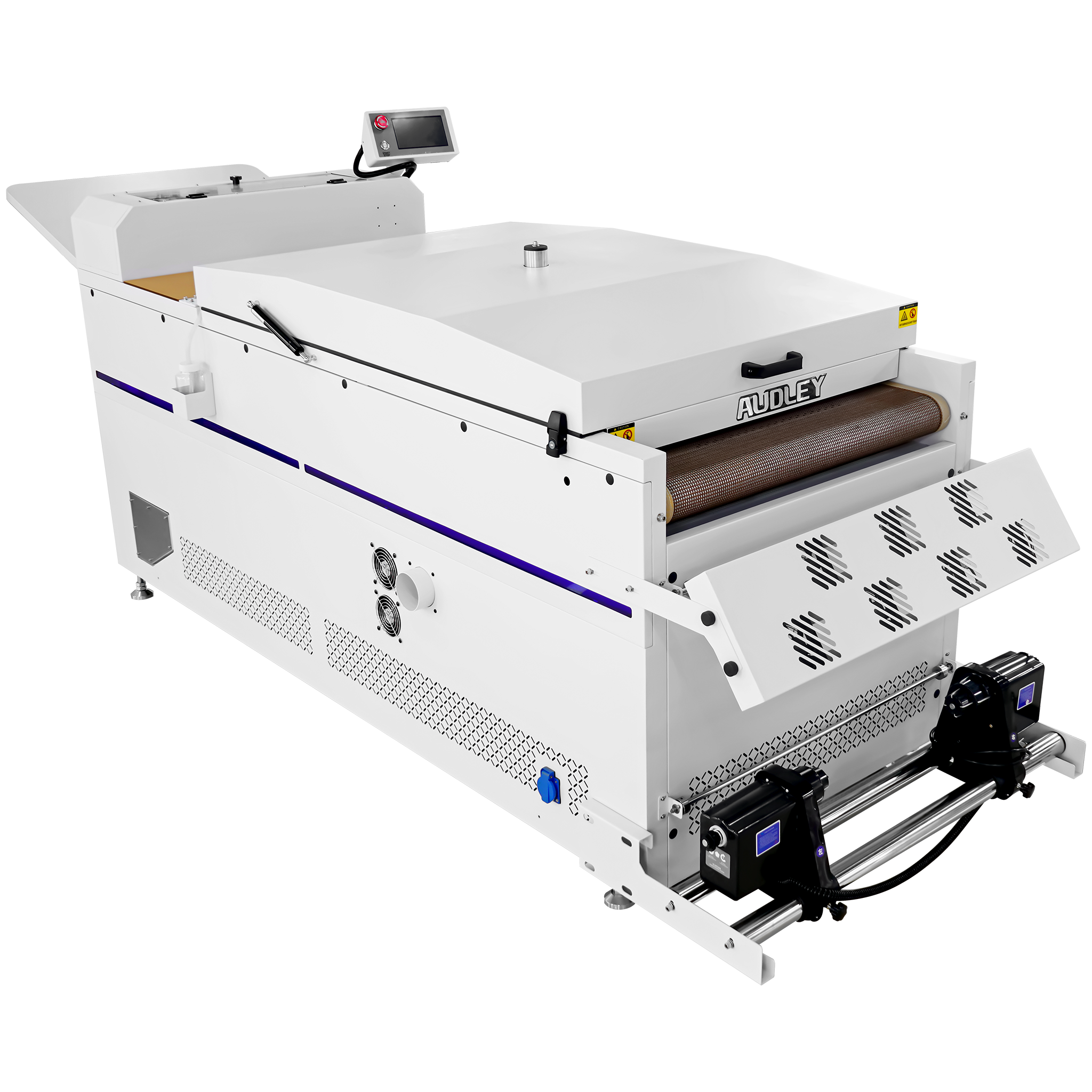

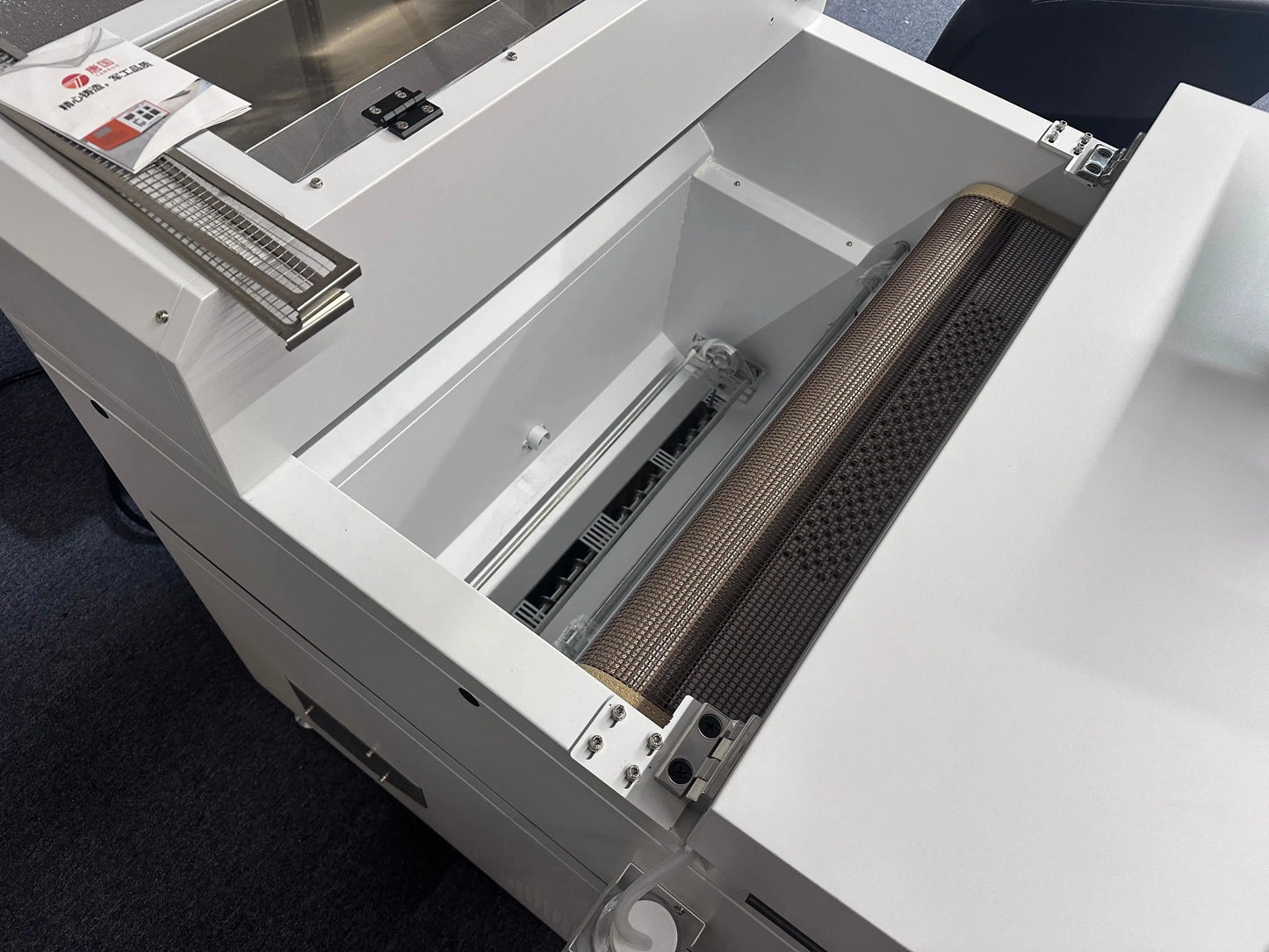

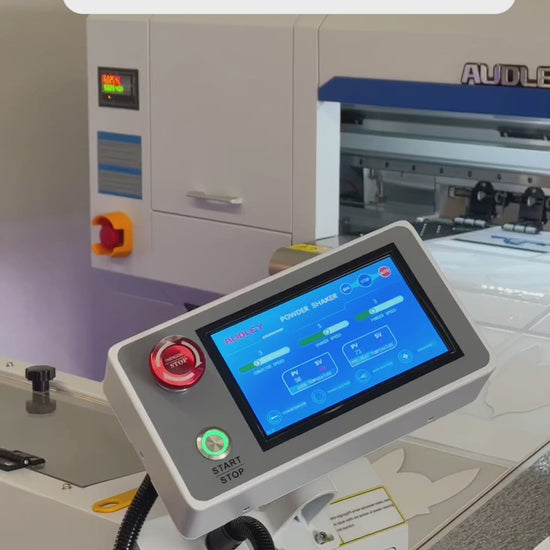

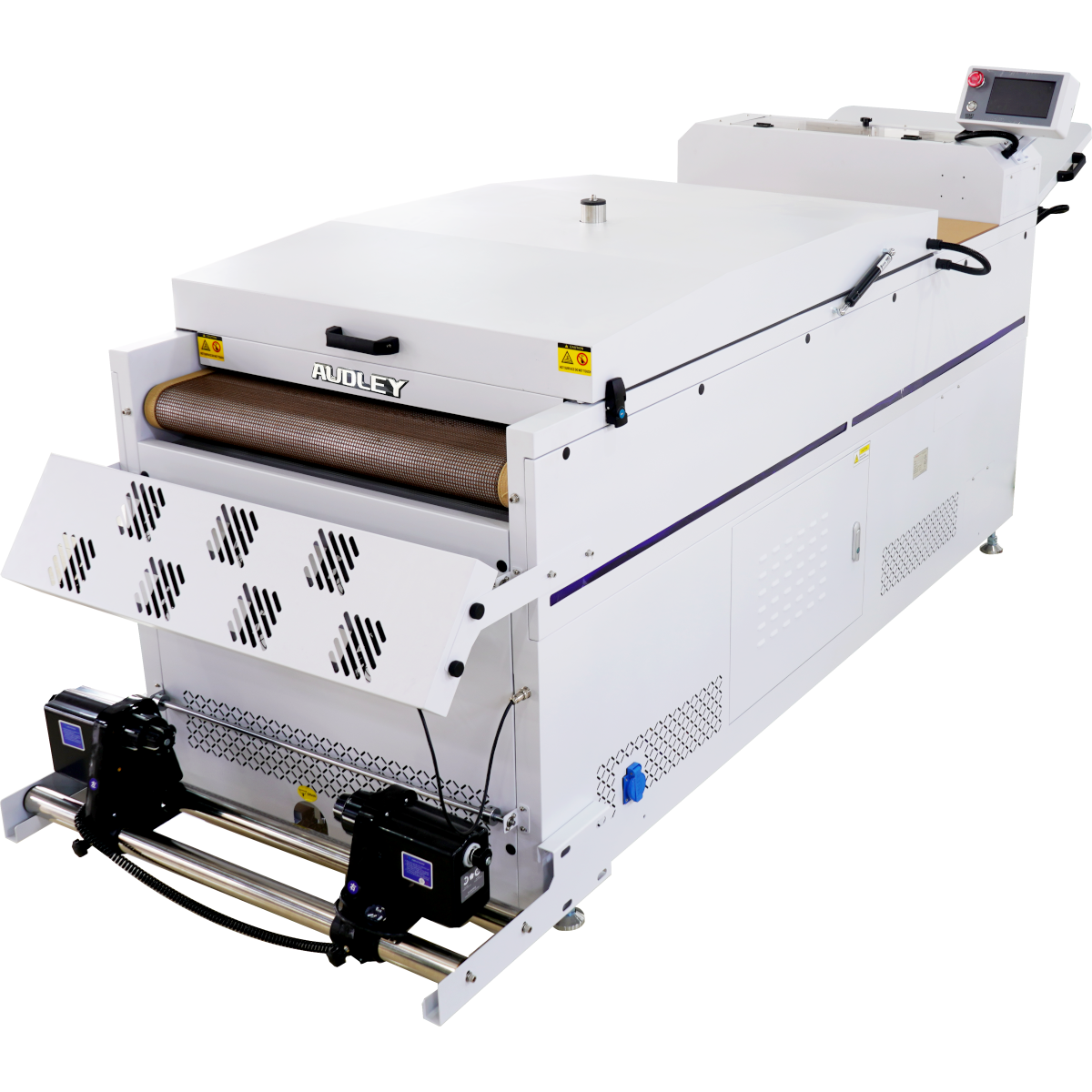

Audley DF-800L(A) Powder Shaker

  • Automated Powder Application – eliminates manual labor by evenly distributing hot-melt adhesive powder across prints for consistent results.
  • Teflon Belt Moving System with Suction – keeps films stable during powdering and curing, preventing shifting and smudges.
  • High-Efficiency Curing System – 10 heating tubes (805 mm, 500W each) ensure rapid, uniform curing for reliable transfers.
  • Large Working Width – supports up to 24 in (60 cm) rolls to match the printer’s output capacity.
  • Industrial-Grade Performance – designed to handle heavy workloads with reliable, long-term operation.
  • Streamlined Workflow – automatic feeding, powdering, and curing in one continuous process for maximum efficiency.
Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer Audley
Audley 4 Printheads (i3200-A1) 24in (60cm) Premium DTF Printer Audley

Technical Specifications

Printer – AUDLEY S8074-3 DTF Printer

  • Model: S8074-3
  • Print Head Configuration: 4 × Epson I3200-A1
  • Control Board: Hoson board
  • Printing Speed:
    4 Pass: 26 m²/h
    6 Pass: 18 m²/h
    8 Pass: 12 m²/h
  • Working Size: ≤ 24 in (60 cm)
  • Ink Type: Pigment Ink (CMYK + White)
  • Voltage & Power: 220V, 50/60Hz – 1500W
  • Working Environment: 59°F – 86°F (15°C – 30°C)
  • Packing Size: 91 × 30 × 35 in (230 × 76 × 87 cm)
  • Weight: 600 lbs (275 kg)

Shaker – Audley DF-800L(A) Powder Shaker

  • Model: DF-800L(A)
  • Working Width: ≤ 24 in (60 cm)
  • Heating Tubes: 10 pcs × 805 mm (500W each)
  • Power Consumption: 5800W
  • Packing Size: 91 × 45 × 50 in (231 × 115 × 128 cm)
  • Weight: 840 lbs (381 kg)

Warranty

Warranty Coverage & Period
Supplier provides a one (1) year limited warranty for all products it manufactures. The warranty period shall be twelve (12) months from the date the equipment is activated. If installation is delayed due to Buyer, the warranty period will begin seven (7) days after shipment, regardless of installation date.
Warranty Exclusions
The following components are excluded from warranty coverage: printhead, nozzles, ink bottles, secondary ink tanks/cartridges, ink sacs, dampers, ink tubes, capping station (suction cap), ink suction nozzles, printhead cables, white ink mixer/splitter, and the complete ink system.
Additional exclusions apply to:
Damage due to improper operation, unstable voltage, or natural disasters.
Unauthorized disassembly, modification, or replacement of parts.
Use of non-Supplier-approved consumables (including inks) that cause or contribute to equipment failure.
Equipment relocation without Supplier’s prior written permission.

Software

Free RIP Software – Flexi or Riin (Up to $499 Value): Choose the RIP software that fits your workflow. Flexi is a well-known, feature-rich option trusted for its advanced color management and precise control ideal for experienced users. Riin is newer but faster and easier to use, making it a great choice for beginners or high-speed production. Both options are included at no extra cost so you can start printing right away.

Support

Online Technical Support:Our experienced support team is available nearly around the clock to provide timely assistance, helping minimize downtime and keep your production running smoothly.

Complimentary On-Site Repair:During the warranty period, we offer one complimentary on-site repair service to address eligible issues at cost, helping maximize equipment uptime and operational reliability.

Installation & Training Options

Free Online Setup Resources:Customers have access to a comprehensive library of instructional videos and step-by-step guides, enabling a smooth and efficient setup process—even for first-time users. (Prices are subject to actual conditions)

On-Site Installation & Training:For a one-time service fee, we provide professional on-site installation along with hands-on training. This ensures your team can operate the printer confidently, efficiently, and correctly from day one.

Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer, To maintain your warranty, please use DTF OneStop approve supplies, as the use of unapproved third-party supplies may void coverage.
