Product highlights
2 Stations16×24 Platens
750°FMax Temp
110 VNo Compressor
999 sTimer Range
Audley

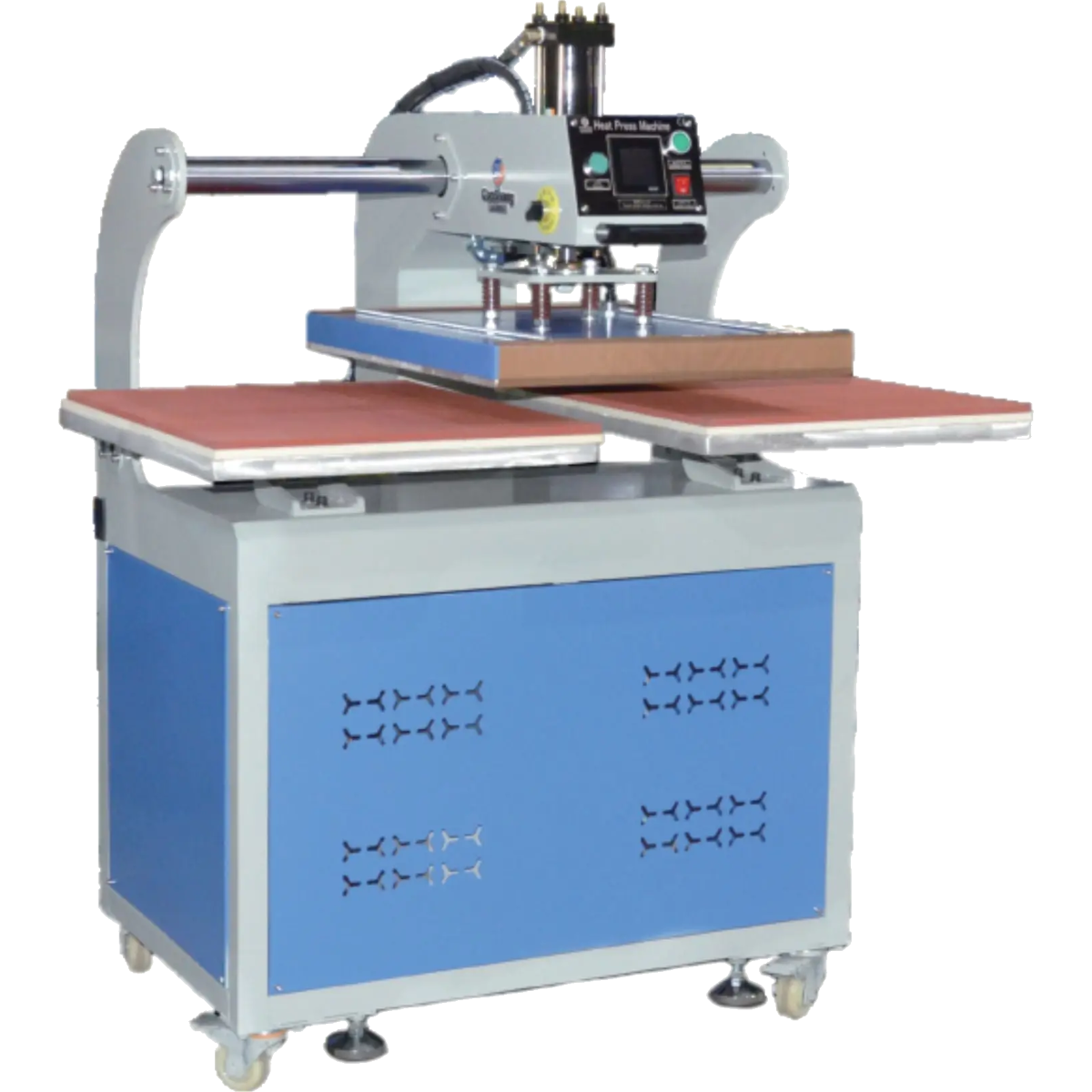

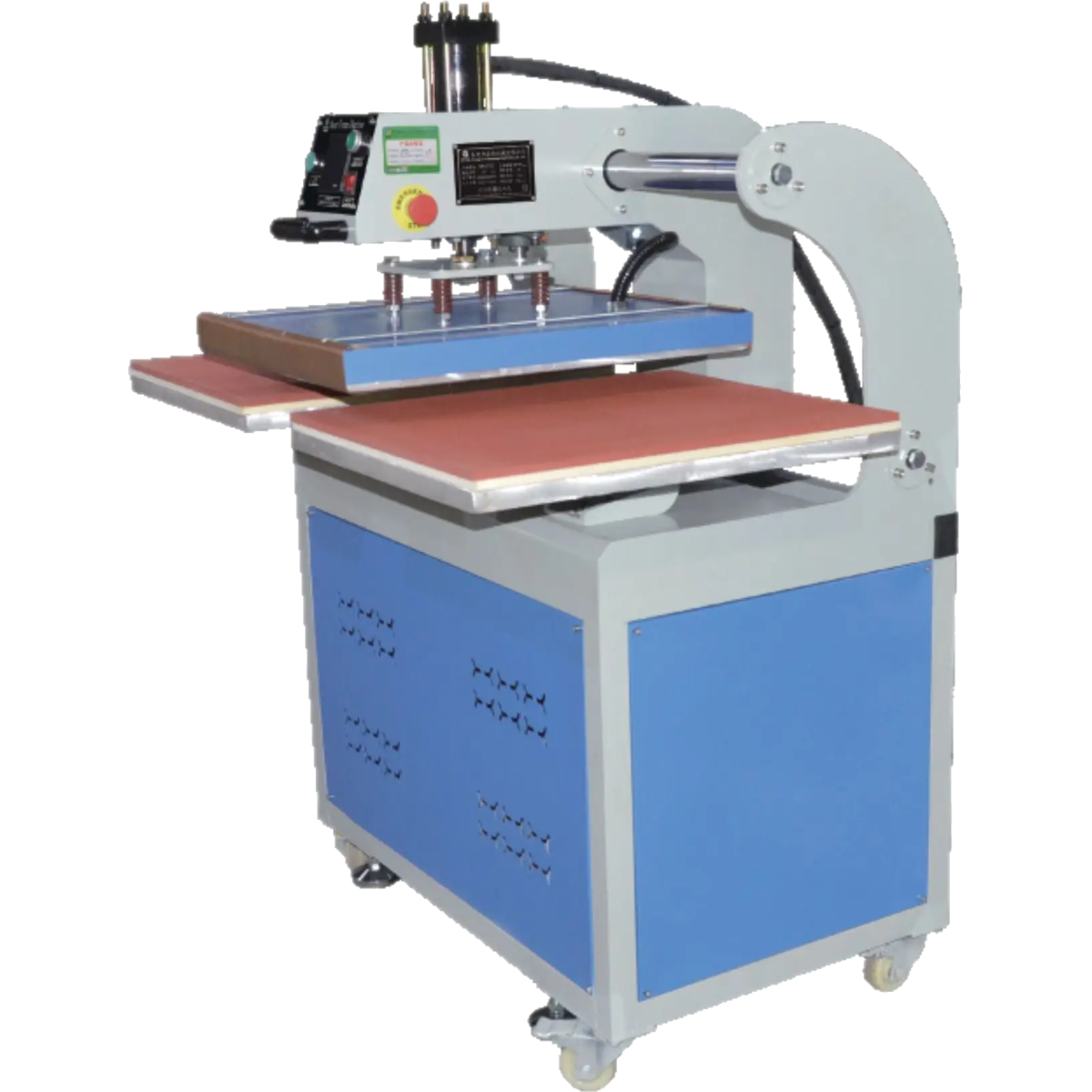

Audley ADL-4060 Dual-Station Hydraulic Heat Press 16×24in (40×60cm)
Calibrated force, press after press: the AUDLEY ADL-4060 Dual-Station Hydraulic Heat Press clamps two 16 × 24 in (40 × 60 cm) platens with a self-contained hydraulic power unit — running from a standard 110V outlet, no a…
$3,200.00
In stock, ready to ship
1
Pickup available at DTF OneStop Open Mon–Fri Pickup 10 AM – 3 PM
Usually ready in 24 hours
19844 Quiroz Court, Unit BCity of Industry, CA 91789United States
Ships in 1 business day In stock in Los Angeles
US-Based Hour Tech Support Real techs, real answers
1-year warranty Parts stocked in the US
Free shipping On orders over $350
Pressure You Can Repeat.
Take a closer look at the dual-station hydraulic press built for high-volume transfer work.
A self-contained hydraulic power unit delivers dead-even clamping force across both 16 × 24 in platens — adjustable to match every transfer type and material, from thin films to thick fleece.
The digital panel holds temperature up to 750°F and timing to 999 seconds, on a heavy-duty frame that runs from a standard 110V outlet — no air compressor required.
View Tech Specs

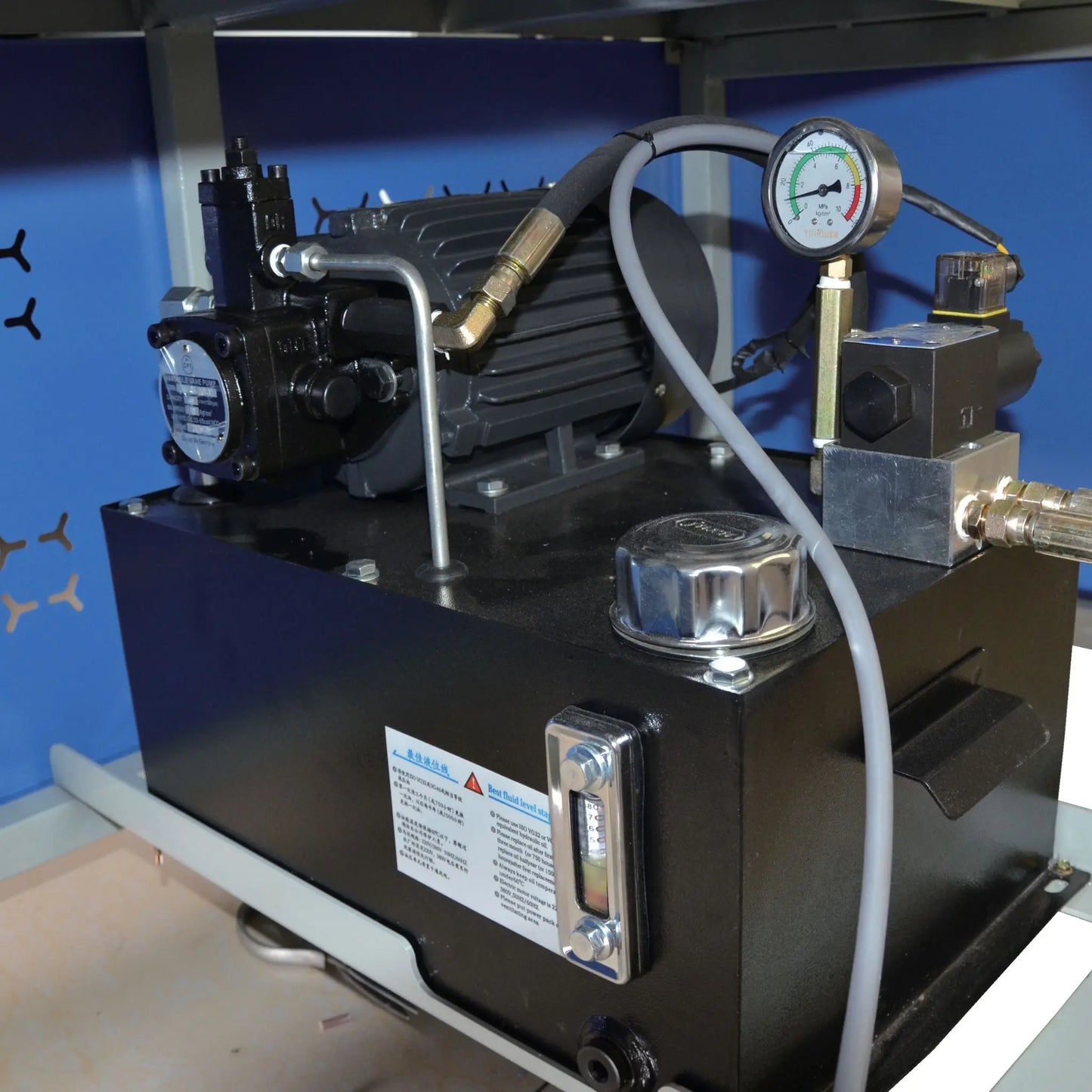

Hydraulic Drive
Hydraulic Power Unit

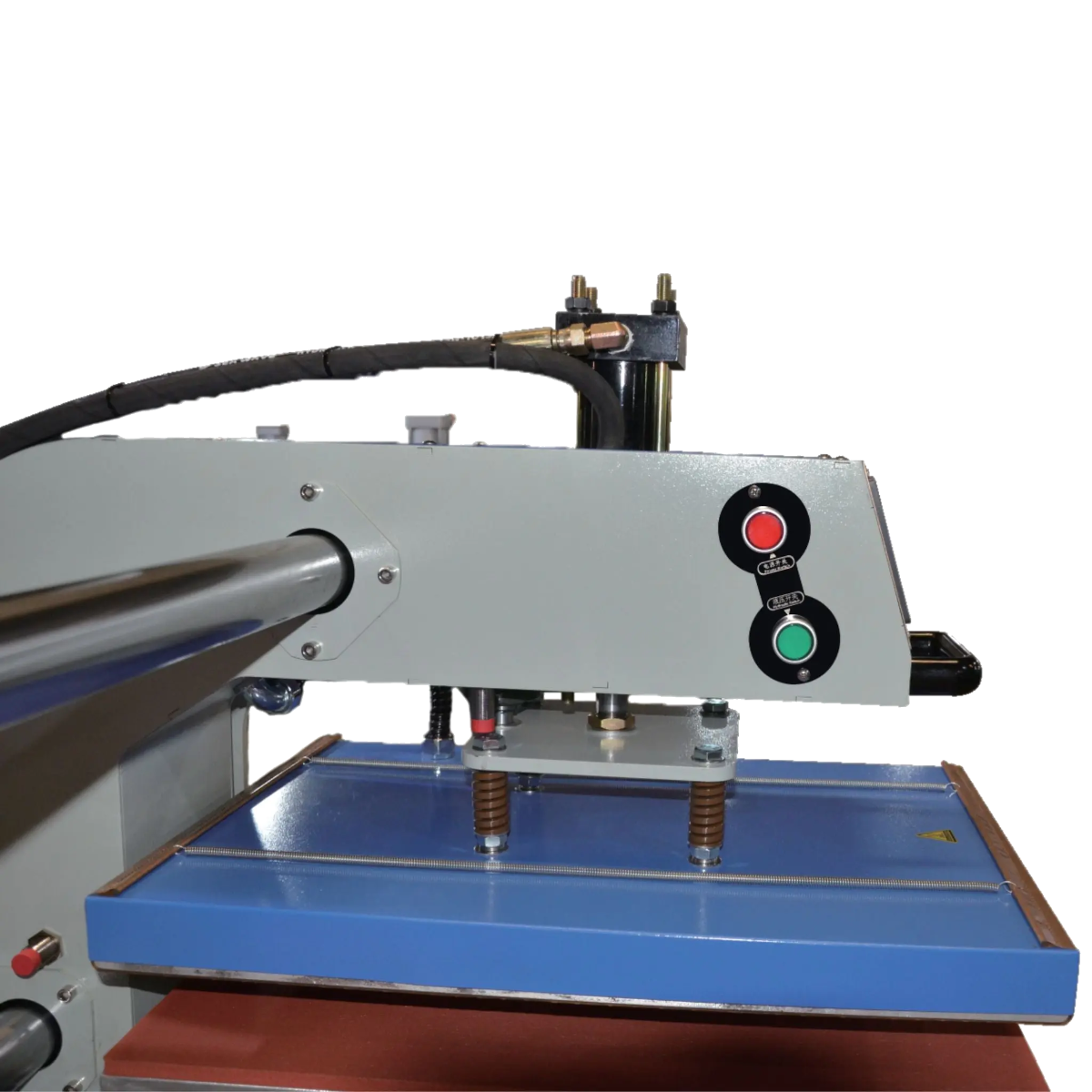

Press Head
Push-Button Press Head

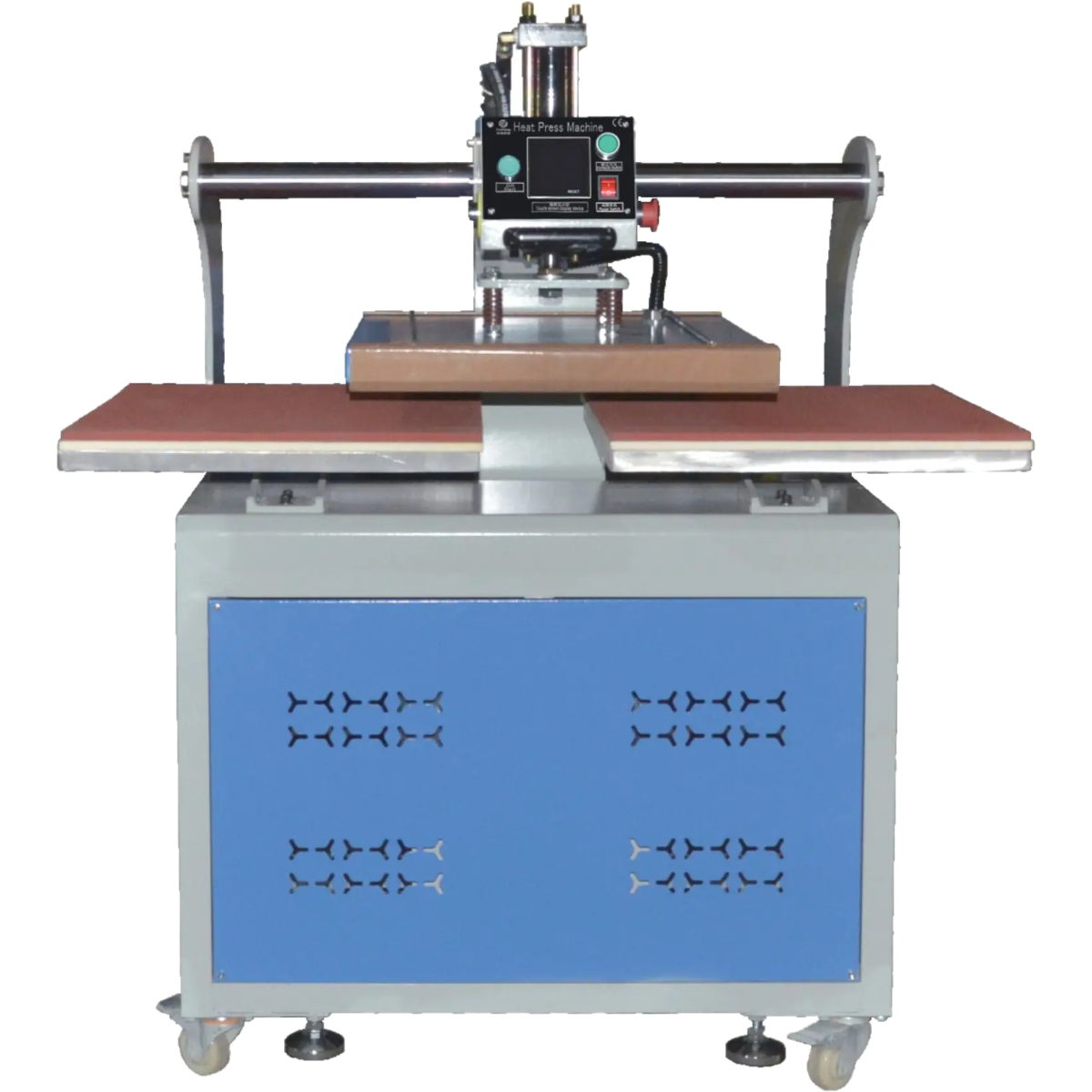

Dual Station
Twin 16×24 Platens
Easy Control
Digital Control Panel
Even Pressure, Every Press.
Hydraulics don't fatigue: the power unit clamps with the same calibrated force on press one and press one thousand.
Pressure adjusts to the job — DTF transfers, sublimation blanks, thick hoodies — while the wide temperature range covers every fabric on the rack.
And because the drive is self-contained, it plugs into a standard 110V outlet — no air compressor, no extra plumbing, no noise.
Why Choose the ADL-4060?
High-Volume by Design — two 16 × 24 in stations keep garments loading and pressing in a continuous cycle.
No Compressor Required — the self-contained hydraulic unit saves the cost, noise and floor space of an air line.
Backed in the U.S. — ships from our Los Angeles warehouse with a 1-year warranty, free training and US-Based Hour Tech Support.
Covered for the First Year
1-Year Full Coverage Warranty on all major machine components (excluding printheads and ink system components).
If anything fails, our Los Angeles team diagnoses it remotely and ships replacement parts straight from local stock — no overseas wait, no guesswork.
Trusted by print professionals across the U.S.
Free Training & US-Based Hour Tech Support
Every machine includes free remote setup and operator training — we get your team printing, not just unboxing.
After that, real technicians answer on our US-Based Hour Tech Support line, backed by parts on the shelf in Los Angeles.
Technical Specifications
Model
– ADL-4060
Type
– Dual-station hydraulic heat press
Platen Size
– 16 × 24 in (40 × 60 cm) × 2
Temperature Range
– 32–750°F (0–399℃)
Time Range
– 10–999 s, fully adjustable
Pressure
– Hydraulic system, adjustable
Voltage
– 110V 50–60Hz (U.S. standard)
Power
– 2600W
Machine Size
– 59 × 32 × 55 in (149 × 80 × 140 cm)
Packing Size
– 40 × 35 × 59 in (102 × 89 × 150 cm)
Weight
– 188 lb (85 kg)
FAQs
Answers to the questions we hear every day from print shops.
Yes — every printer includes remote setup and operator training with our LA techs, plus lifetime support.
Supplies ship same-day before 1PM PT. Machines ship freight within 1-2 business days after testing.
Yes — 0% down options through our financing partners. See the Financing page or ask our team.
Yes, free self-pickup at 19844 Quiroz Court, Unit B, City of Industry, CA — Mon-Fri 10AM-3PM.
US-stocked parts and remote diagnostics. Most issues resolve within one business day.
