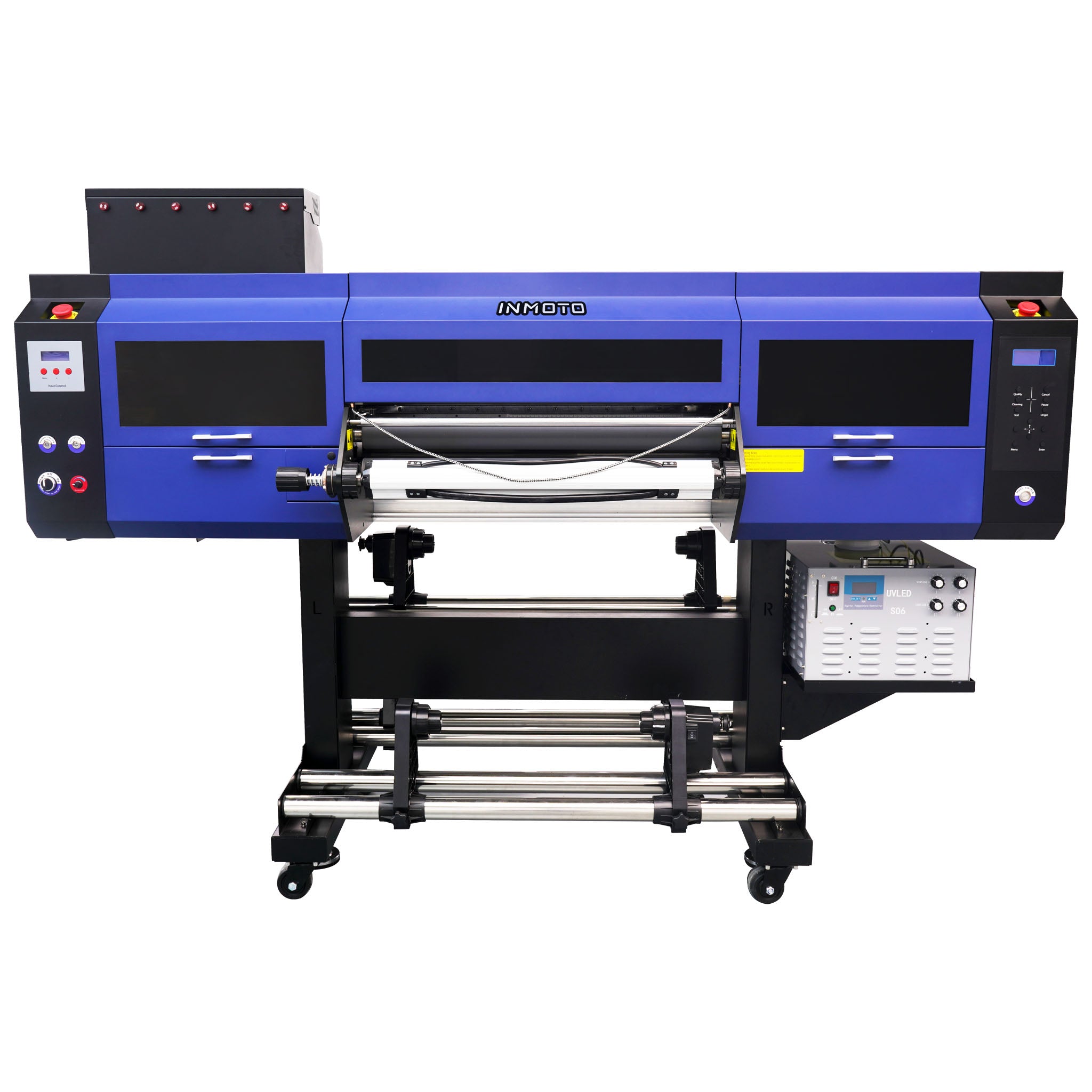

Experience the pinnacle of advanced printing technology with the InMoto 8073-3 (UV) Printer, designed for professional-grade, crystal-clear UV DTF label and film production. This high-performance machine delivers unparalleled precision, efficiency, and versatility for your printing needs.

Key Features:

• Equipment Type: UV DTF Printer
• Model: 8073-3 (UV)
• Board Type: Hoson
• Printheads: Equipped with 3 Epson i3200-U1 high-efficiency printheads for exceptional detail and speed.
• Ink Type: UV ink (CMYK+W+V) for vibrant, durable, and long-lasting prints.
• Print Width: Supports a print width of up to 600mm for a wide range of applications.
• Printing Plan: Supports Glue + White + Color + Varnish for diverse printing needs.
• White-Color Printing Modes:
  • 4PASS: 10 m²/h (Production Mode) for fast, high-volume jobs.
  • 6PASS: 7 m²/h (Precision Mode) for detailed, quality output.
  • 8PASS: 4 m²/h (High Precision Mode) for ultra-fine resolution prints.

Advanced Standard Configuration:

Motors and Mechanics:

• X-Axis: High-precision Leadshine servo motor ensures smooth, high-speed operation.
• Y-Axis: High-performance system for precise, accurate movements.

Guidance and Adjustability:

• HIWIN High-Speed Silent Linear Guide Rail: Seamless printhead movement and reduced noise.
• Adjustable Printhead Base Height: Enhanced user control and flexibility.

Ink Management:

• Positive Ink Supply System: Ensures consistent flow and quality.
• Automatic White Ink Stirring System: Prevents sedimentation.

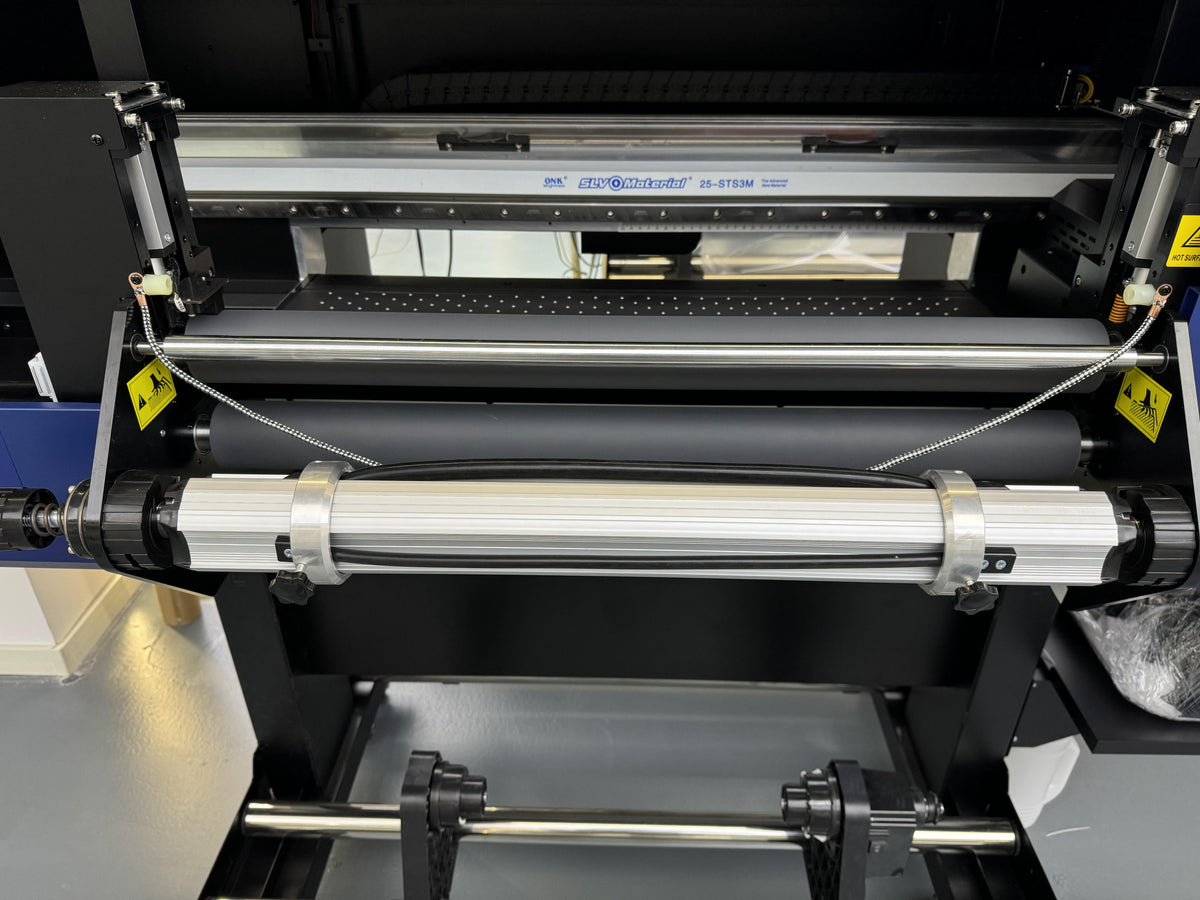

Roller and Media System:

• Automatic Lifting Roller System: Ensures consistent media handling and optimized feeding.

UV Curing:

• High-Power UV Lamps: Provide stable, effective curing of prints.

Additional Features:

• Low-Paper Alarm: Built-in sensor functionality for seamless operation.
• Silent HIWIN Guide Rail: Reduces operational noise.
• High-Quality Ink Station: Designed for precision and reliability.

High-Quality Output and Versatile Performance:

• Color Configuration: Supports up to 7-color printing (CMYK+W+V) for versatile and vibrant results.
• Durability: Built with a robust full-aluminum machine body and platform for consistent high-quality output.

Software Compatibility:

• Photoprint RIP Software: Streamlined workflow with international standard ICC color control for superior color accuracy and adjustable curves and density.
• File Formats: Compatible with common file formats, including TIFF and JPEG.

Specifications at a Glance:

• Media System: Supports soft advertising materials and UV DTF film.
• Connectivity: High-speed data transmission for seamless operation.
• Dimensions: Packing size of 224 x 84 x 114 cm.
• Power: 2700W, Operating Voltage: AC220V.
• Weight: 260KG.

Optimal Working Environment:

• Temperature Range: 15°C – 30°C.
• Relative Humidity: 40% – 60%.

Warranty:

• 1-Year Full Coverage Warranty (Excluding Print Heads): Protects all major machine components, giving you peace of mind and ensuring minimal downtime.

Software:

• Photoprint Software Included: Designed for precision, efficiency, and seamless UV DTF compatibility.

Support:

• Comprehensive Online Support: Access technical support to minimize downtime and keep production on track.
• On-Site Installation & Training ($500): For a one-time fee, we provide on-site setup and training to ensure your team can confidently operate the printer from day one.

Important Notice: On-site travel and lodging expenses are not included and are to be covered by the customer. To maintain your warranty, please use DTF OneStop-approved supplies, as the use of unapproved third-party supplies may void coverage.

Revolutionize your printing experience with the InMoto 8073-3 (UV) Printer—perfect for professionals seeking reliability, precision, and unparalleled quality in every print.
