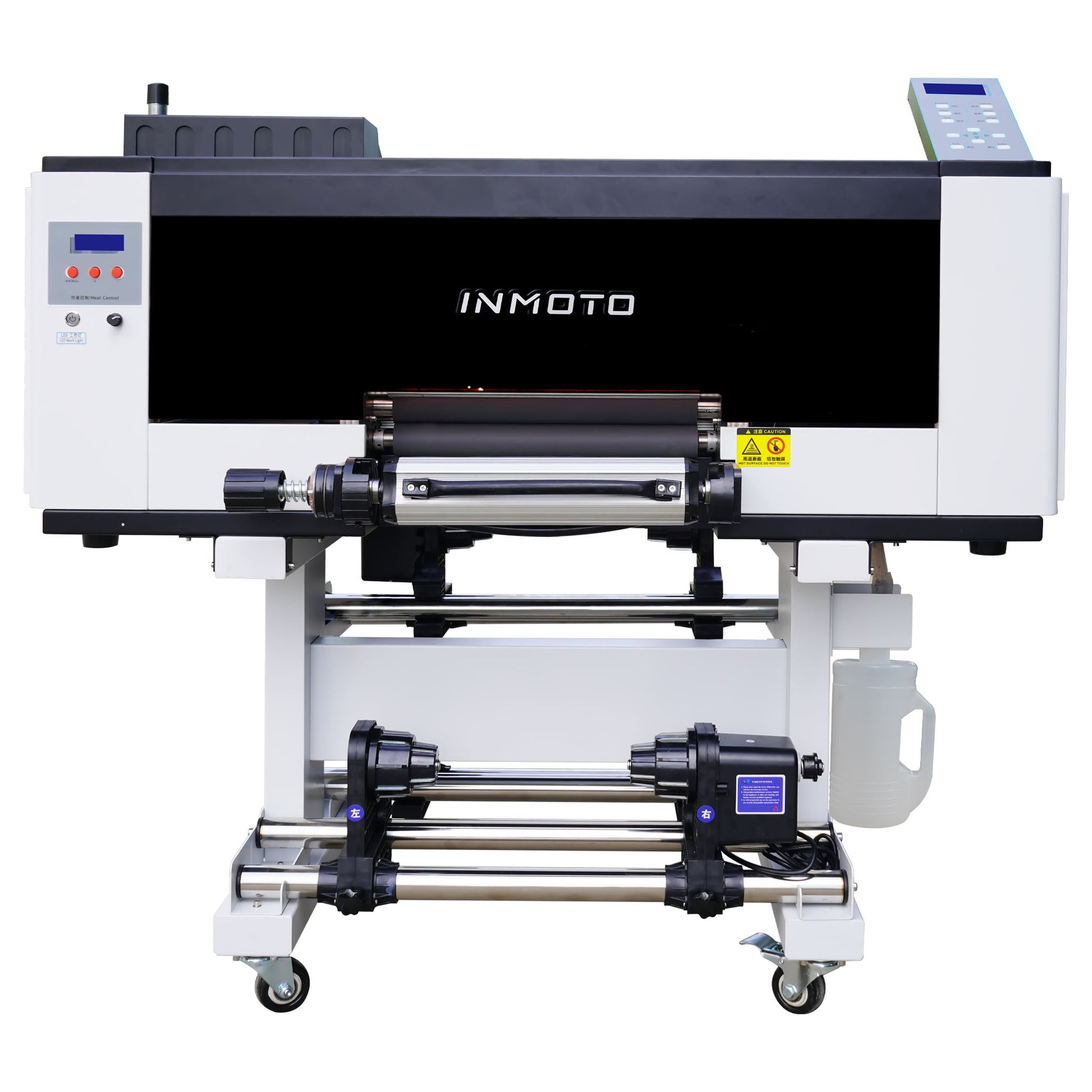

Transform your printing capabilities with the InMoto A3 UV DTF Printer, a versatile and advanced solution for creating high-quality UV crystal labels. This printer is engineered to deliver precision, efficiency, and exceptional durability, making it ideal for professionals seeking standout printing results across various industries.

Key Features:

• Dual Printhead Performance: Equipped with Triple Epson (XP600) printheads, the InMoto A3 UV DTF Printer offers efficient printing with enhanced accuracy.
• Vibrant UV Ink System: Uses environmentally friendly, vivid, and outdoor-durable UV ink with a 6-color configuration (C + M + Y + K + White + Varnish), ensuring rich and consistent results.
• High Precision & Speed:
  • 6PASS Normal Mode: Prints at 3 m²/h, ideal for standard jobs.
  • 8PASS Precision Mode: Prints at 2 m²/h for high-detail work.
• Integrated White, Color, and Varnish Printing: Delivers multi-layered printing in one pass for crisp and glossy label finishes.

Robust Motor & Guide Rail System:

• X-axis: Driven by a high-quality Leadshine servo motor.
• Y-axis: Managed by a 57 stepper motor with precision drive control.

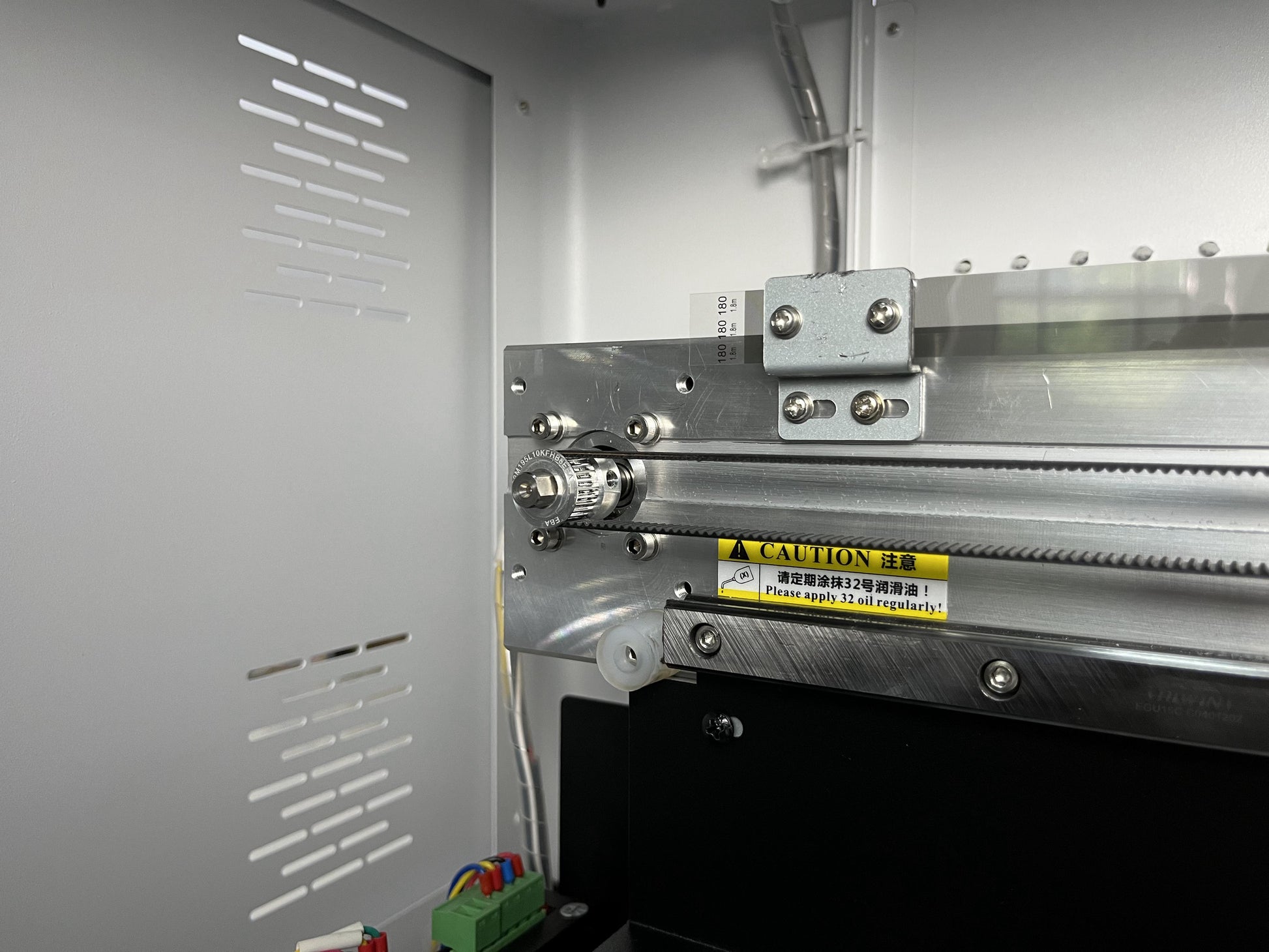

• HIWIN High-speed Silent Linear Guide Rail: Ensures smooth operation.

Advanced Features:

• Piezoelectric Inkjet Technology: Offers on-demand, precise ink spraying for sharp images.
• Automatic White Ink Stirring System: Maintains consistent white ink flow to prevent clogging and ensure uniform printing.

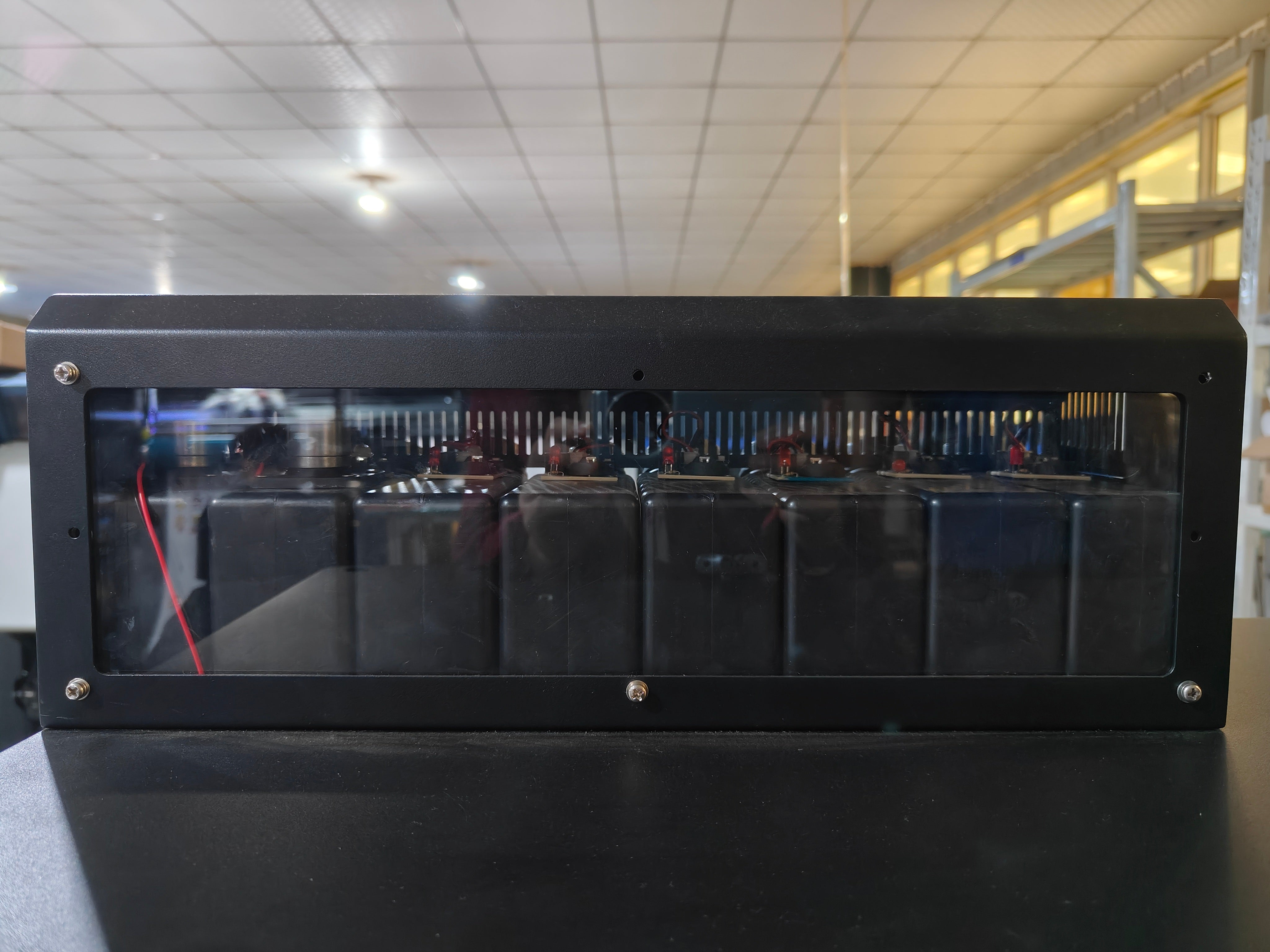

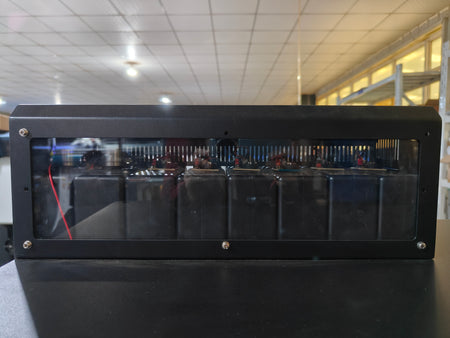

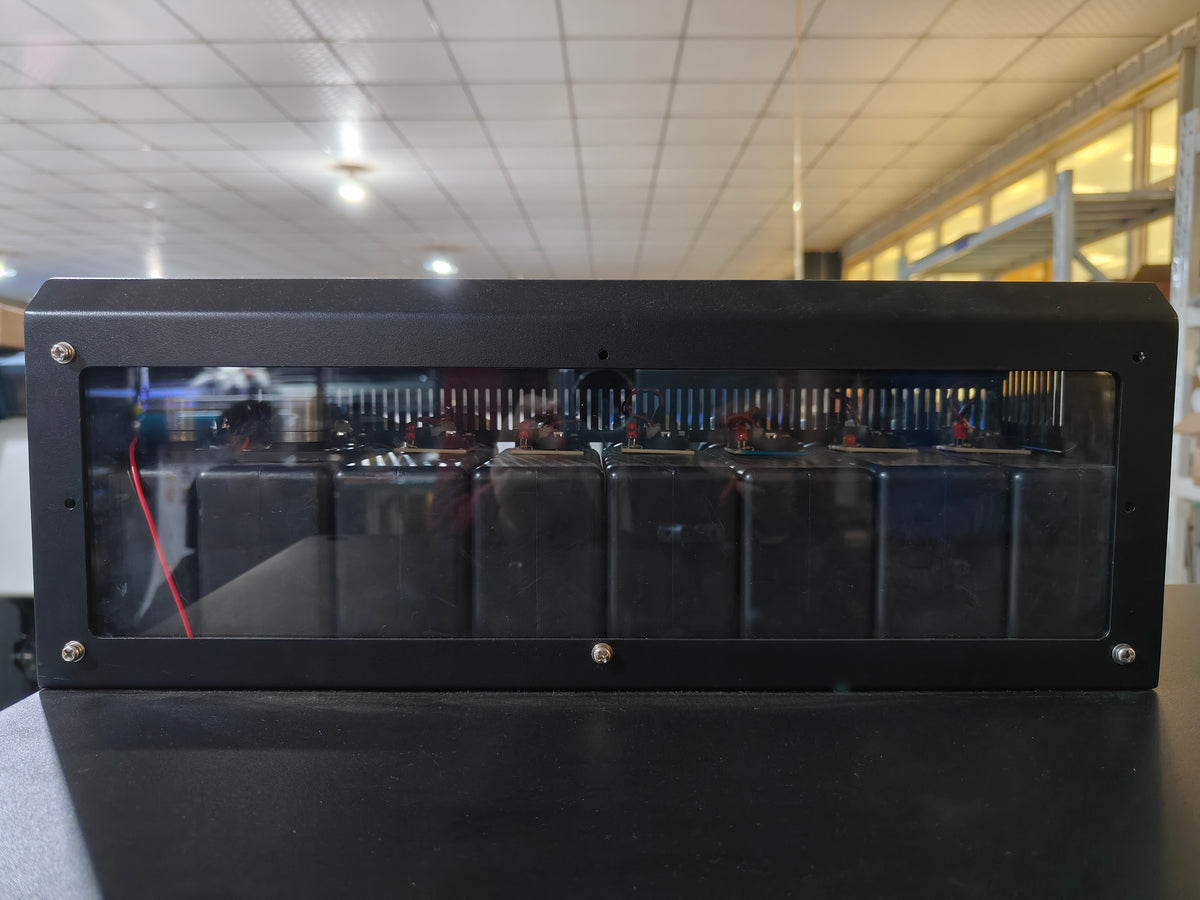

• High-power Air-cooled UV Lamps: Efficiently cure the ink for quick drying and lasting quality.
• Intelligent Temperature-Controlled Heating: Ensures optimal ink performance for vibrant results.
• Automatic Low-Ink Alarm System: Alerts users to refill before depletion, ensuring uninterrupted operations.
• High-Precision Roller System: Facilitates smooth media feeding with adjustable dual-side unwinding for versatility.

Technical Specifications:

• Print Width: 12in (300mm)
• Media Handling: Adjustable dual-side paper feed system supporting 12in (300mm) roll specifications.
• Ink Tank Capacity: 500ml
• Supported File Formats: TIFF, JPEG, etc.
• RIP Software: PP with ICC color control, adjustable curves, and density.

Dimensions & Power:

• Equipment Size: 1200mm × 500mm × 1166mm
• Packaging Size: 1525mm × 725mm × 755mm
• Net Weight: 100kg
• Power Requirements: AC110-220V, 1.2KW

Optimal Operating Environment:

• Temperature: 15°C – 30°C
• Humidity: 40% – 60%

Recommended Computer Configuration:

• CPU: Intel(R) Core(TM) i7-9700K
• Memory: 8GB or more (Kingston recommended)
• Motherboard: Gigabyte Z370 HD3
• Storage: 128GB SSD + 1TB HDD (Seagate, Samsung, Toshiba)
• OS: Windows 7 64-bit or Windows 10 64-bit
• Network: Gigabit network card

Application Fields:

The InMoto A3 UV DTF Printer is versatile, producing crystal labels suitable for a wide range of flat surfaces. Its application spans multiple industries, including:

• Gifts and Crafts: Ideal for custom branding and detailed designs.
• Packaging and Food: Ensures clear, high-quality labels that stand out.
• Advertising: Perfect for logo labeling and high-visibility promotional items.
• Home Textiles, Pharmaceuticals, and More: Trusted for professional and durable labeling needs.

Warranty

·       1-Year Full Coverage Warranty (Excluding Print Heads): Protects all major machine components (excluding print heads), giving you peace of mind and ensuring minimal downtime for your production.

Software

·       Free Flexi Design Software ($499 Value): Comes bundled with Flexi software at no extra cost, so you can start producing vibrant, precise prints from day one. Flexi is trusted for its advanced color management and seamless DTF compatibility.

Support

·       18-Hour U.S.-Based Online Support: Our knowledgeable support team is ready nearly around the clock to assist you, minimizing downtime and keeping production on track. One Complimentary On-Site Repair: Within the warranty period, we offer a one-time no-cost on-site repair to address any eligible issues, maximizing machine uptime for your business.

Installation & Training Options

·       Free Online Setup Resources: Access a library of video tutorials and step-by-step guides designed to make setup easy, even for first-time users.

·       On-Site Installation & Training ($500): For a one-time fee, we provide comprehensive on-site setup and personalized training to ensure your team can operate the printer confidently and efficiently from day one.

Experience next-level print innovation with the InMoto A3 UV DTF Printer and unlock endless possibilities for creative, high-quality label production.
